Description
Product Features
- Stackable modular cube system designed for very high-volume foodservice demand.
- Produces up to 1000 lb / 24 hr (455 kg) for large beverage and prep operations.
- Matched storage bin holds 440 lb (200 kg), maintaining a substantial reserve.
- Makes full, half or large cube options for varied beverage service.
- Approximately 15 minutes per cycle supports continuous replenishment.
- Air-cooled R290 refrigeration supports efficient output without water-cooled plumbing.
- Runs on 220 V / 60 Hz / 1 Ph with 10 A draw and 2150 W rated power.
- SUS304/316/430 stainless steel and plastic construction supports heavy commercial use.
- Polyurethane foam with Cyclopentane (CFC-free) helps maintain stored ice quality.
- DOE, ETL and NSF certifications support commercial specifications.
Technical Specifications
| Dimensions | 30 in W x 33.8 in D x 75.6 in H |
|---|---|
| Condenser Type | Air-Cooled |
| Refrigerant | R290 (10.69 oz) |
| Rated Amp, Voltage, Power | 10 A, 220 V / 60 Hz / 1 Ph, 2150 W |
| Certification | DOE, ETL, NSF |
| Ice Production | 1000 lb / 24 hr (455 kg) |
| Maximum Storage Bin Capacity | 440 lb (200 kg) |
| Ice Shape & Size | Cube: full / half / large |
| Ice Making Time / Cycle | Approx. 15 min / cycle |
| Ice Release Method | Bin drop / storage bin |
| Materials | SUS304/316/430 SS + plastic |
| Insulation | Polyurethane foam |
| Foam Blowing Agent | Cyclopentane (CFC-free) |
| Net Weight | 187 lb + 80 lb (85 + 36 kg) |
| Warranty | 3 Year Parts & Labour |

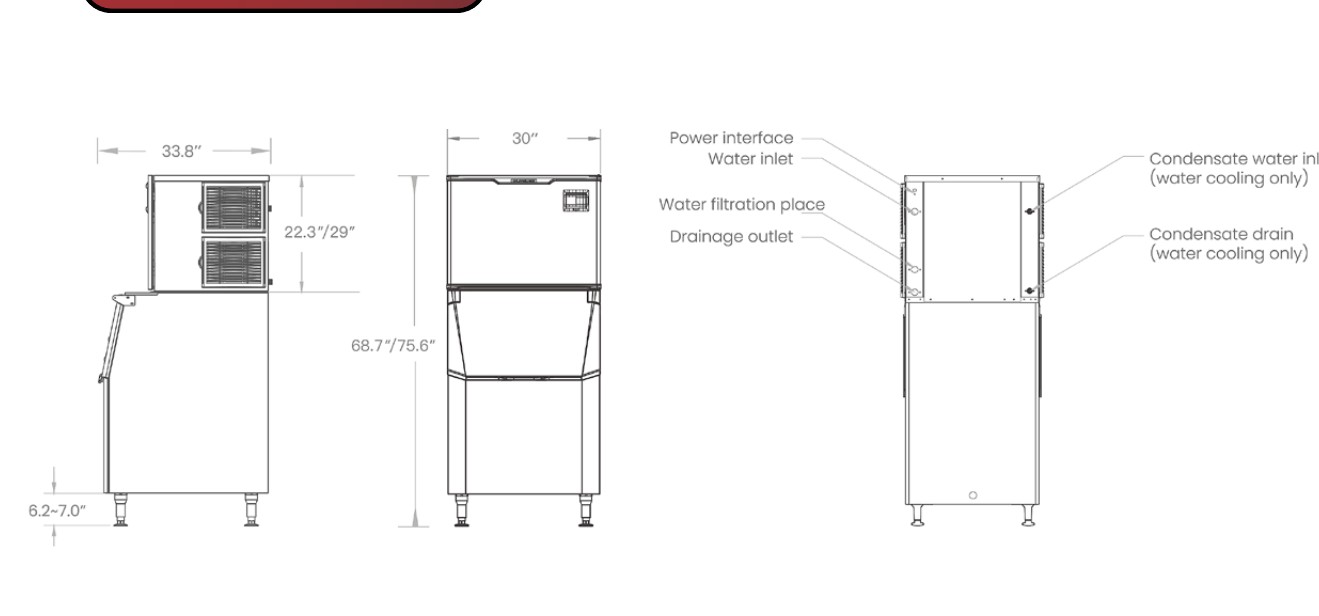

Technical Drawing
Environmentally Friendly R290 Refrigerant
High latent heat and low discharge temperatures improve efficiency.
Offers better energy efficiency, reducing operating costs.
Global Warming Potential (GWP) of just 3, compared to R134a's 1430 and R404A's 3922.
