Description
Product Features
- Stackable modular cube system sized for heavier foodservice demand.
- Produces up to 350 lb / 24 hr (160 kg) for daily drink, prep and rush-period demand.
- Matched storage bin holds 300 lb (136 kg), providing a larger reserve between harvests.
- Makes full, half or large cube options for different beverage styles.
- Approximately 15 minutes per cycle helps replenish ice during steady service.
- Air-cooled R290 refrigeration supports efficient output without water-cooled plumbing.
- Runs on 110 V / 60 Hz / 1 Ph with 8.51 A draw and 780 W rated power.
- SUS304/316/430 stainless steel and plastic construction supports frequent bin loading.
- Polyurethane foam with Cyclopentane (CFC-free) helps limit heat gain.
- DOE, ETL, NSF and NRCan certifications support commercial specifications.
Technical Specifications
| Dimensions | 22 in W x 33.8 in D x 68.7 in H |
|---|---|
| Condenser Type | Air-Cooled |
| Refrigerant | R290 (4.76 oz) |
| Rated Amp, Voltage, Power | 8.51 A, 110 V / 60 Hz / 1 Ph, 780 W |
| Certification | DOE, ETL, NSF, NRCan |
| Ice Production | 350 lb / 24 hr (160 kg) |
| Maximum Storage Bin Capacity | 300 lb (136 kg) |
| Ice Shape & Size | Cube: full / half / large |
| Ice Making Time / Cycle | Approx. 15 min / cycle |
| Ice Release Method | Bin drop / storage bin |
| Materials | SUS304/316/430 SS + plastic |
| Insulation | Polyurethane foam |
| Foam Blowing Agent | Cyclopentane (CFC-free) |
| Net Weight | 115 lb + 73 lb (52 + 33 kg) |
| Warranty | 3 Year Parts & Labour |

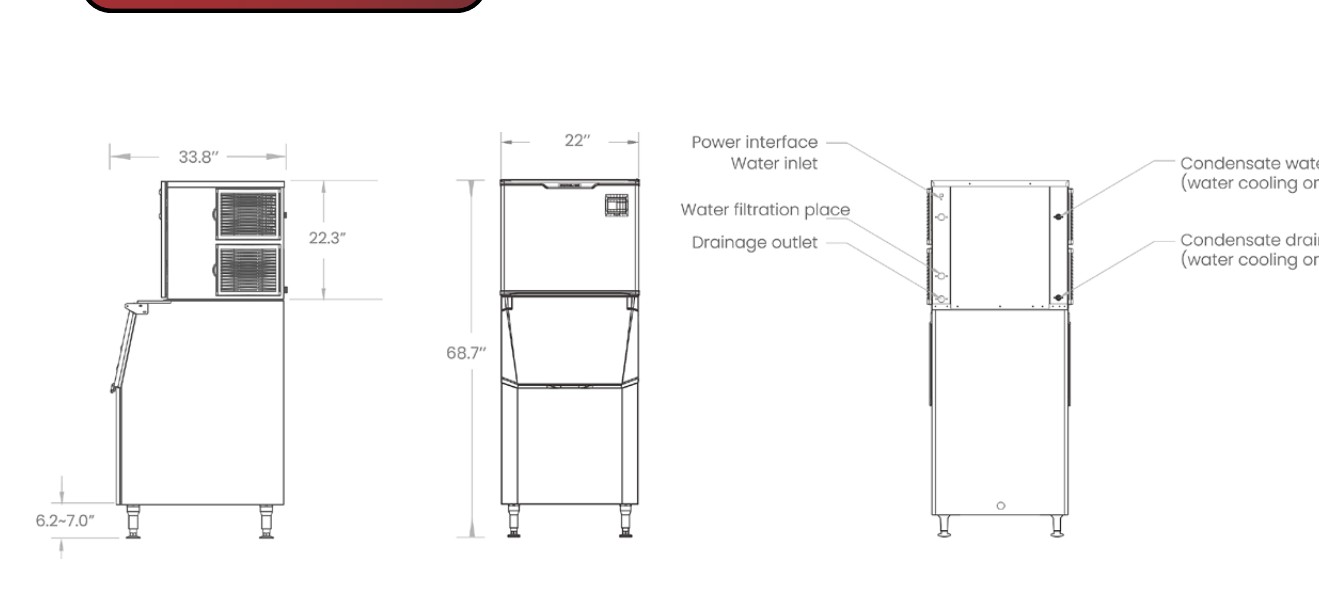

Technical Drawing
Environmentally Friendly R290 Refrigerant
High latent heat and low discharge temperatures improve efficiency.
Offers better energy efficiency, reducing operating costs.
Global Warming Potential (GWP) of just 3, compared to R134a's 1430 and R404A's 3922.
