Description
Product Features
- Modular cube ice head paired with dispenser storage for controlled ice access.
- Produces up to 420 lb / 24 hr (190 kg) for daily drink, prep and rush-period demand.
- Dispenser bin holds 132 lb (60 kg), keeping ice protected while ready for service.
- Makes full, half or large cube options for varied beverage service.
- Approximately 15 minutes per cycle supports steady replenishment.
- Air-cooled R290 refrigeration supports efficient output without water-cooled plumbing.
- Runs on 110 V / 60 Hz / 1 Ph with 10.71 A total draw and 1010 W rated power.
- SUS304/316/430 stainless steel and plastic construction supports frequent service.
- Polyurethane foam with Cyclopentane (CFC-free) helps maintain stored ice quality.
- DOE, ETL and NSF certifications support commercial specifications.
Technical Specifications
| Dimensions | 22 in W x 33.7 in D x 75.8 in H |
|---|---|
| Condenser Type | Air-Cooled |
| Refrigerant | R290 (4.94 oz) |
| Rated Amp, Voltage, Power | 10.71 A, 110 V / 60 Hz / 1 Ph, 1010 W |
| Certification | DOE, ETL, NSF |
| Ice Production | 420 lb / 24 hr (190 kg) |
| Maximum Storage Bin Capacity | 132 lb (60 kg) |
| Ice Shape & Size | Cube: full / half / large |
| Ice Making Time / Cycle | Approx. 15 min / cycle |
| Ice Release Method | HD-130B dispenser |
| Materials | SUS304/316/430 SS + plastic |
| Insulation | Polyurethane foam |
| Foam Blowing Agent | Cyclopentane (CFC-free) |
| Net Weight | 115 lb + 170 lb (52 + 77 kg) |
| Warranty | 3 Year Parts & Labour |

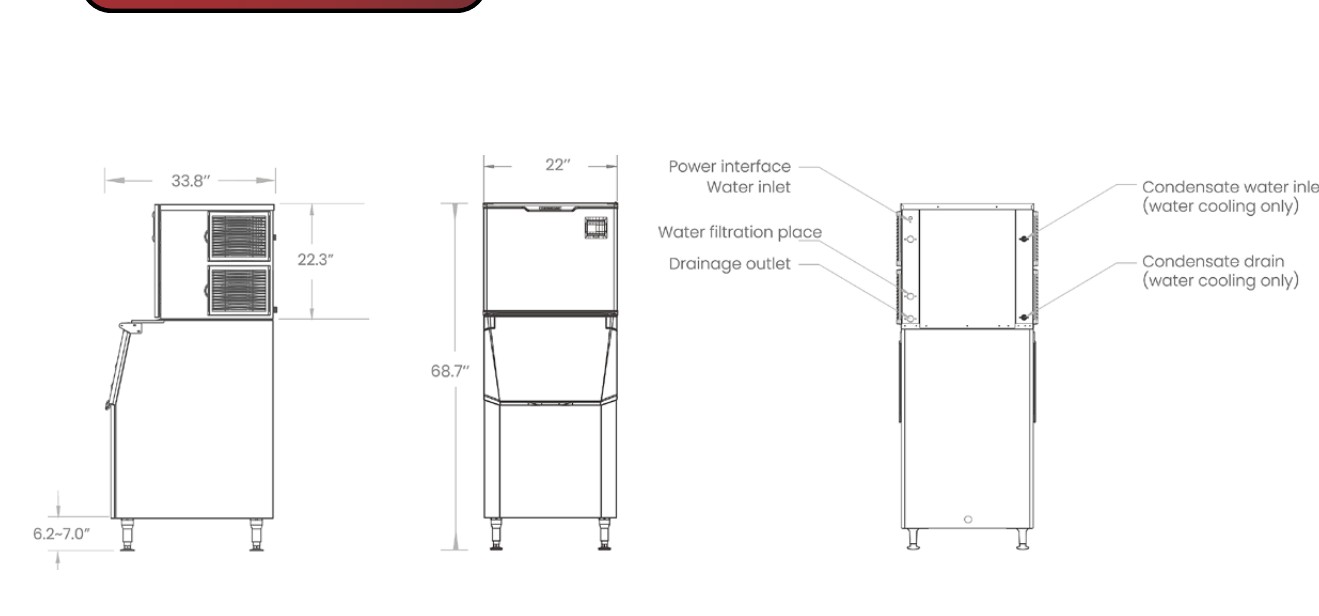

Technical Drawing
Environmentally Friendly R290 Refrigerant
High latent heat and low discharge temperatures improve efficiency.
Offers better energy efficiency, reducing operating costs.
Global Warming Potential (GWP) of just 3, compared to R134a's 1430 and R404A's 3922.
