Description
Product Features
- Stackable modular cube system sized for heavier foodservice demand.
- Produces up to 500 lb / 24 hr (225 kg) for demanding beverage and prep operations.
- Matched storage bin holds 440 lb (200 kg), providing a large reserve between harvests.
- Makes full, half or large cube options for varied beverage service.
- Approximately 15 minutes per cycle supports steady replenishment.
- Air-cooled R290 refrigeration supports efficient output without water-cooled plumbing.
- Runs on 110 V / 60 Hz / 1 Ph with 11.26 A draw and 1113 W rated power.
- SUS304/316/430 stainless steel and plastic construction supports commercial use.
- Polyurethane foam with Cyclopentane (CFC-free) helps maintain stored ice quality.
- DOE, ETL, NSF and NRCan certifications support commercial specifications.
Technical Specifications
| Dimensions | 30 in W x 33.8 in D x 68.7 in H |
|---|---|
| Condenser Type | Air-Cooled |
| Refrigerant | R290 (5.29 oz) |
| Rated Amp, Voltage, Power | 11.26 A, 110 V / 60 Hz / 1 Ph, 1113 W |
| Certification | DOE, ETL, NSF, NRCan |
| Ice Production | 500 lb / 24 hr (225 kg) |
| Maximum Storage Bin Capacity | 440 lb (200 kg) |
| Ice Shape & Size | Cube: full / half / large |
| Ice Making Time / Cycle | Approx. 15 min / cycle |
| Ice Release Method | Bin drop / storage bin |
| Materials | SUS304/316/430 SS + plastic |
| Insulation | Polyurethane foam |
| Foam Blowing Agent | Cyclopentane (CFC-free) |
| Net Weight | 143 lb + 80 lb (65 + 36 kg) |
| Warranty | 3 Year Parts & Labour |

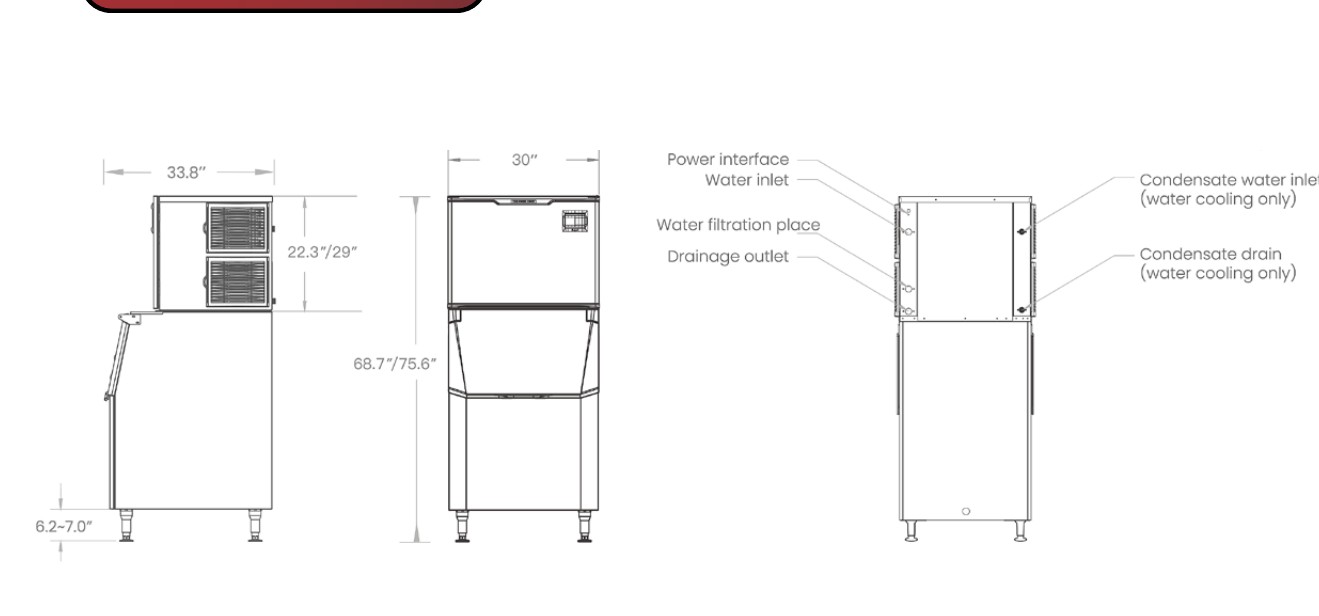

Technical Drawing
Environmentally Friendly R290 Refrigerant
High latent heat and low discharge temperatures improve efficiency.
Offers better energy efficiency, reducing operating costs.
Global Warming Potential (GWP) of just 3, compared to R134a's 1430 and R404A's 3922.
