Description
Product Features
- Stackable modular cube system sized for high-volume foodservice demand.
- Produces up to 694 lb / 24 hr (315 kg) for busy beverage and prep operations.
- Matched storage bin holds 440 lb (200 kg), providing a substantial ice reserve.
- Makes full, half or large cube options for varied beverage service.
- Approximately 15 minutes per cycle supports steady replenishment.
- Air-cooled R290 refrigeration supports efficient output without water-cooled plumbing.
- Runs on 220 V / 60 Hz / 1 Ph with 7.1 A draw and 1500 W rated power.
- SUS304/316/430 stainless steel and plastic construction supports commercial use.
- Polyurethane foam with Cyclopentane (CFC-free) helps maintain stored ice quality.
- DOE, ETL and NSF certifications support commercial specifications.
Technical Specifications
| Dimensions | 30 in W x 33.8 in D x 68.7 in H |
|---|---|
| Condenser Type | Air-Cooled |
| Refrigerant | R290 (8.82 oz) |
| Rated Amp, Voltage, Power | 7.1 A, 220 V / 60 Hz / 1 Ph, 1500 W |
| Certification | DOE, ETL, NSF |
| Ice Production | 694 lb / 24 hr (315 kg) |
| Maximum Storage Bin Capacity | 440 lb (200 kg) |
| Ice Shape & Size | Cube: full / half / large |
| Ice Making Time / Cycle | Approx. 15 min / cycle |
| Ice Release Method | Bin drop / storage bin |
| Materials | SUS304/316/430 SS + plastic |
| Insulation | Polyurethane foam |
| Foam Blowing Agent | Cyclopentane (CFC-free) |
| Net Weight | 146 lb + 80 lb (66 + 36 kg) |
| Warranty | 3 Year Parts & Labour |

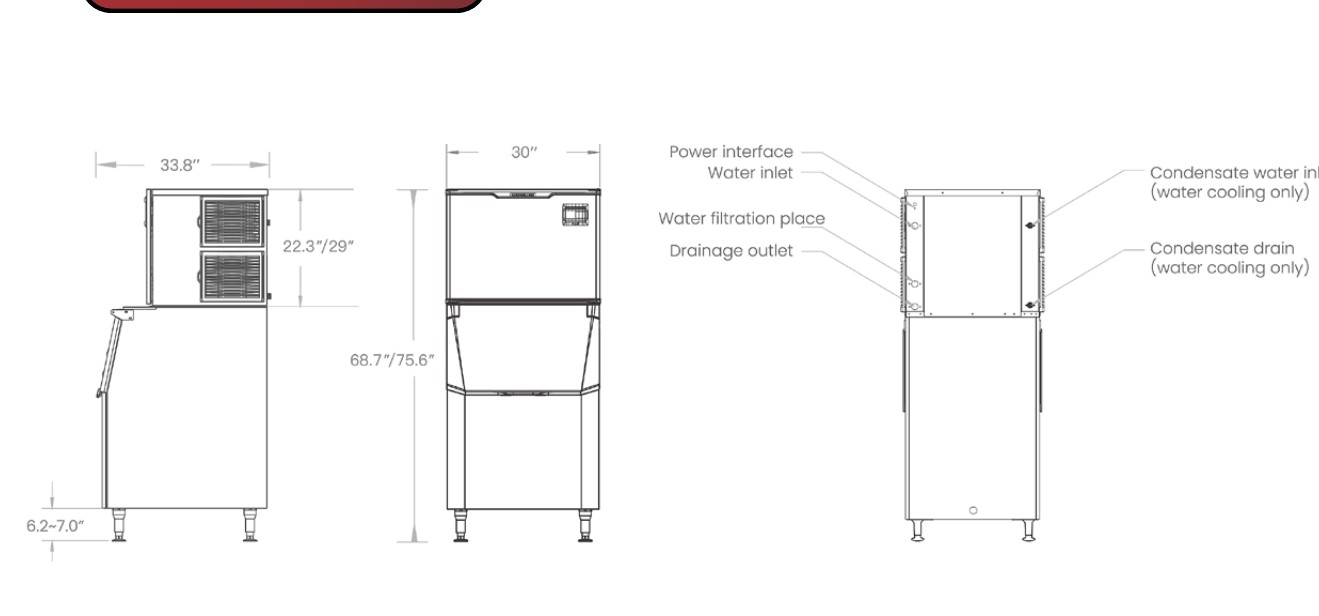

Technical Drawing
Environmentally Friendly R290 Refrigerant
High latent heat and low discharge temperatures improve efficiency.
Offers better energy efficiency, reducing operating costs.
Global Warming Potential (GWP) of just 3, compared to R134a's 1430 and R404A's 3922.
