Description
Product Features

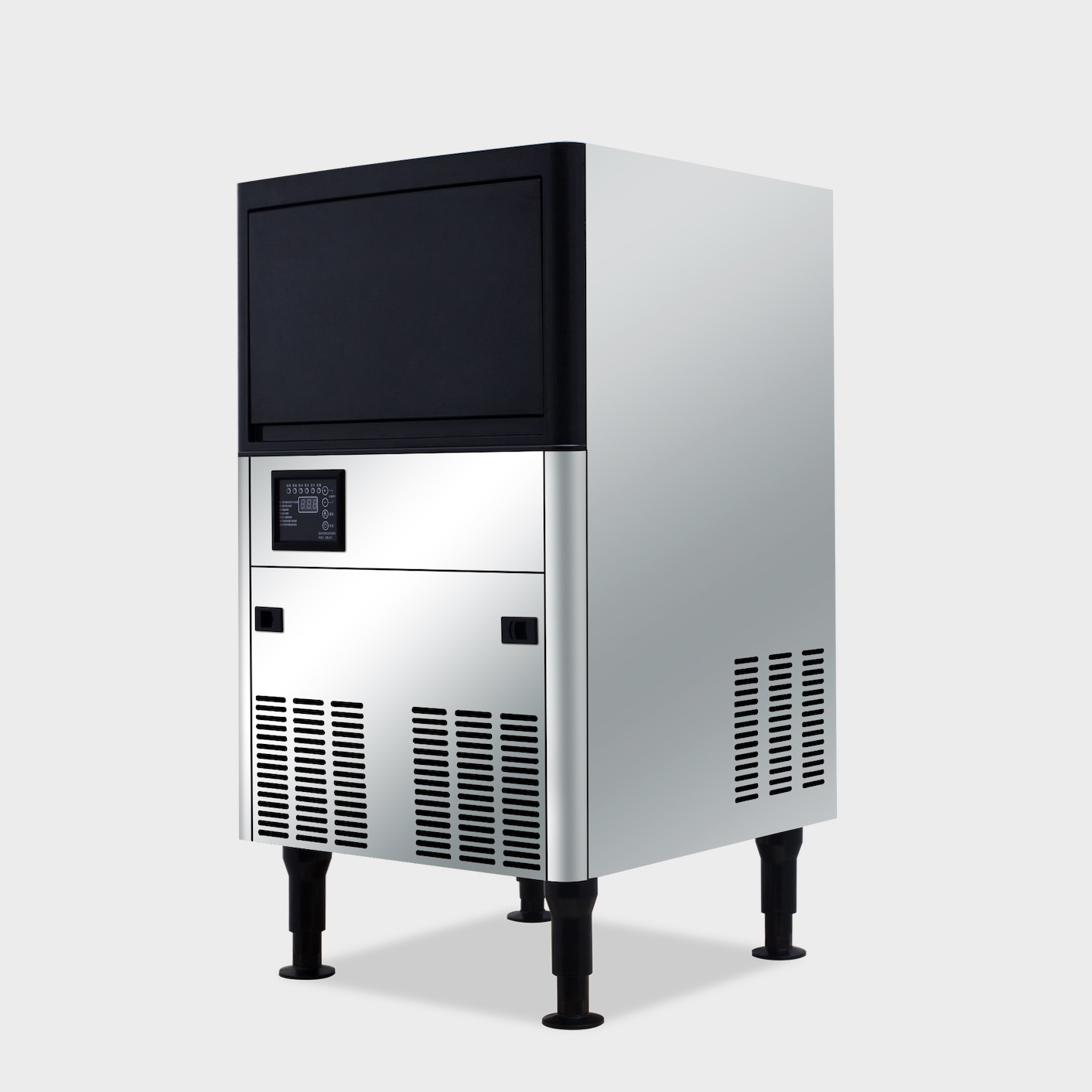

- Freestanding vertical cube ice machine for bars, prep areas, and beverage service.
- Produces up to 80 lb / 24 hr (36 kg) to cover daily drink, prep, and rush-period demand.
- Built-in bin stores 33 lb (15 kg), so fresh ice is ready at the machine.
- Makes full or half cube options for standard beverage service.
- About 15 minutes per cycle helps replenish ice during steady service periods.
- Air-cooled R290 refrigeration supports efficient output without water-cooled plumbing.
- Runs on 110 V / 60 Hz / 1 Ph with 3.5 A draw and 350 W rated power.
- 304 SS, ABS, PE liner and galvanized rear construction combine stainless panels with food-grade internal liner materials.
- Polyurethane foam with Cyclopentane (CFC-free) helps limit heat gain and maintain stored ice quality.
- DOE, ETL and NSF certifications support commercial specification requirements.
Technical Specifications
| Dimensions | 19.69 in W x 17.72 in D x 35.43 in H |
|---|---|
| Condenser Type | Air-Cooled |
| Refrigerant | R290 (2.82 oz) |
| Rated Amp, Voltage, Power | 3.5 A, 110 V / 60 Hz / 1 Ph, 350 W |
| Certification | DOE, ETL, NSF |
| Ice Production | 80 lb / 24 hr (36 kg) |
| Maximum Storage Bin Capacity | 33 lb (15 kg) |
| Ice Shape & Size | Cube: full / half |
| Ice Making Time / Cycle | Approx. 15 min / cycle |
| Ice Release Method | Built-in bin |
| Materials | 304 SS, ABS, PE liner, galv. rear |
| Insulation | Polyurethane foam |
| Foam Blowing Agent | Cyclopentane (CFC-free) |
| Net Weight | 80 lb (36 kg) |
| Warranty | 3 Year Parts & Labour |

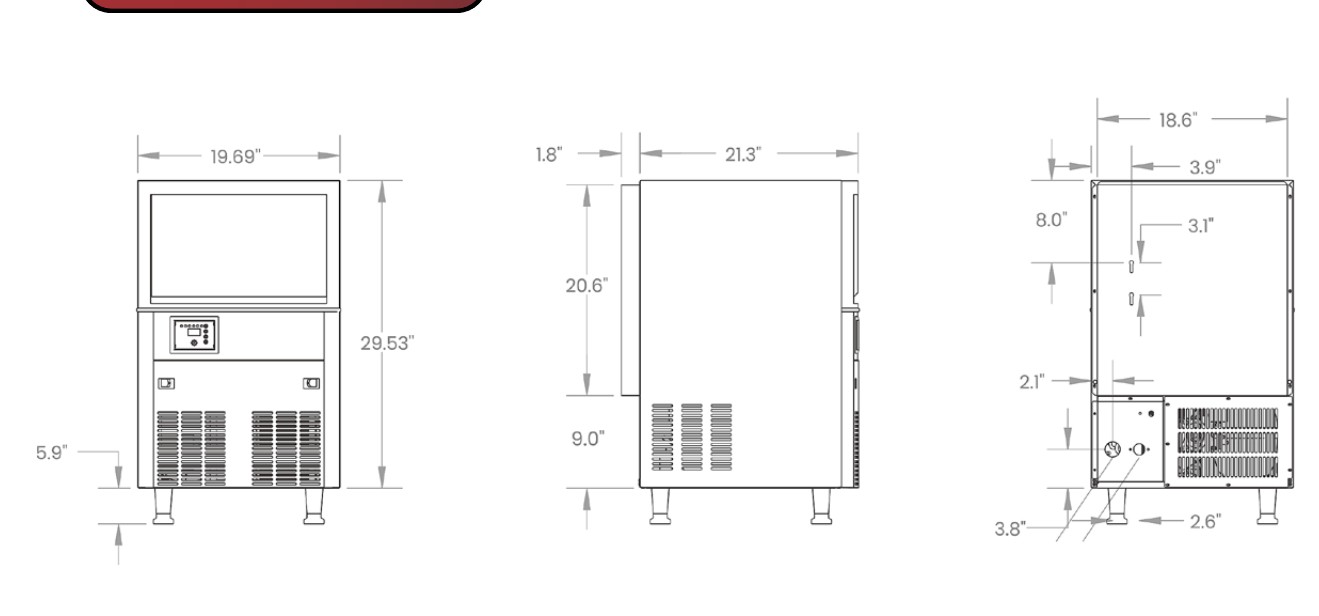

Technical Drawing
Environmentally Friendly R290 Refrigerant
High latent heat and low discharge temperatures improve efficiency.
Offers better energy efficiency, reducing operating costs.
Global Warming Potential (GWP) of just 3, compared to R134a's 1430 and R404A's 3922.
